61303621021
Manufacturer:
Wurth Electronics
Mfr.Part #:
61303621021
Datasheet:
Description:

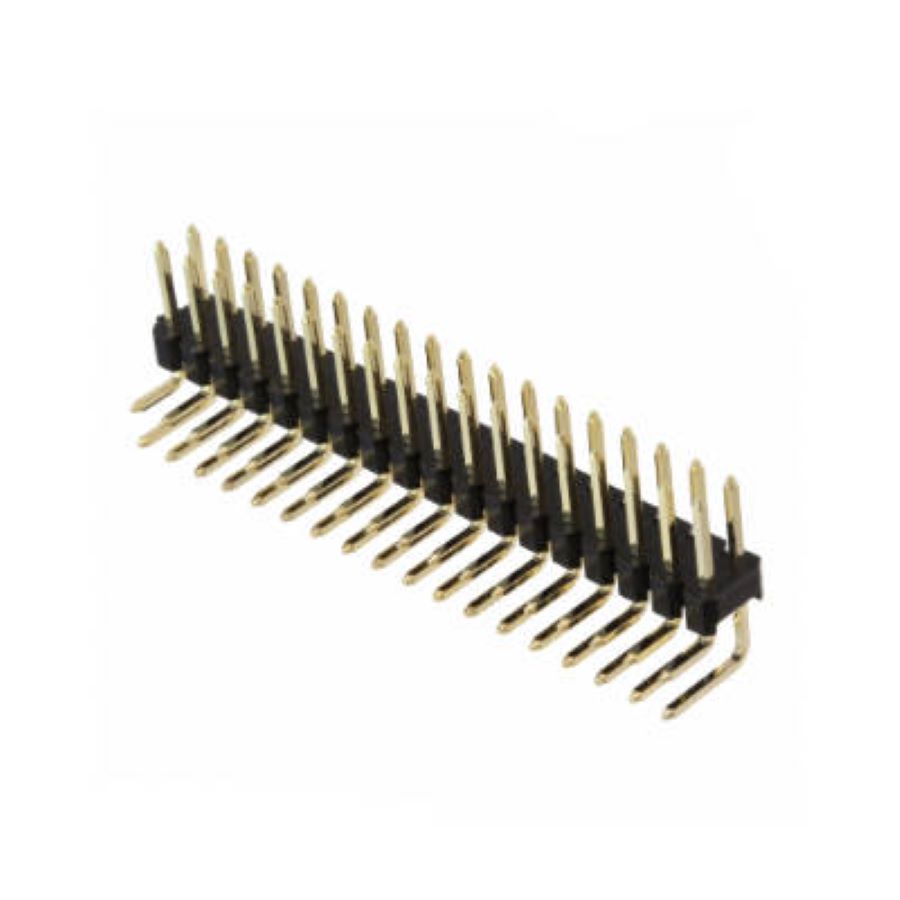

Headers and Wire Housings Through Hole Male Pin Number of Positions:36 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 36 |
| Packaging | Bulk |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Operating Supply Voltage | 250 V |
| Color | Black |
| Gender | Male |
| Number of Contacts | 36 |
| Connector Type | Male Pin |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Contact Resistance | 20 mΩ |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Termination Post Length | 3 mm |
| Mount | Through Hole |
| Contact Material | Copper |
Stock: 215
Distributors
pcbx
pcbxUnit Price$1.18253
Ext.Price$1.18253
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.18253 | $1.18253 |
| 10 | $1.00428 | $10.04280 |
| 25 | $0.83617 | $20.90425 |
| 50 | $0.69715 | $34.85750 |
| 100 | $0.63408 | $63.40800 |
| 300 | $0.60580 | $181.74000 |
| 500 | $0.57877 | $289.38500 |
